IOTester® Product Types.
IOTester is provided in two product versions: IOTESTER and IOTESTER-DISP.
IOTESTER-DISP provides extended features for display module handling: Build-in display controller with memory mapped video memory and external 16, 18 or 24 bit RGB display bus. Accelerator hardware with video data copy and fill operations.
Product specification overview
FEATURES | IOTESTER-DISP | IOTESTER |
| Number of I/O pins | 45 pins | 45 pins |
| External data bus types | 8-bit byte aligned 16-bit word aligned 16-bit byte aligned | 8-bit byte aligned 16-bit word aligned 16-bit byte aligned |
| 6800 / 8080 type clock | 6800 / 8080 type clock | |
| Max address bus size | 24-bit | 24-bit |
| Bus hardware WAIT support | Yes | Yes |
| Max number of IOTesters used by one PC application | 4 | 4 |
| External interrupts events (from all devices) | 3 (12) | 2 (8) |
| SPI bus support | Yes | Yes |
| I2C bus support | Yes | Yes |
| Timer + timer interrupts | Yes | Yes |
| Interrupt controller | Yes | Yes |
| Timestamp counter | Yes | Yes |
| Interrupt event counter | Yes | Yes |
| RGB display controller | Yes | - |
| Video buffer, general image storage | Yes, 16 Mb | - |
| Copy / fill accelerator | Yes | - |
| PWM signal for backlight control | Yes | - |
| Touch screen controller | Yes | - |
| PC connection type | USB 2.0 | USB 2.0 |
| Max number of IOTester PC applications active simultaneously | 255 (USB limit) | 255 (USB limit) |
| Max burst I/O access speed | 400-600 ns (USB / PC dependent) | 400-600 ns (USB / PC dependent) |
| Single read access speed | 0.5 ms (USB / PC dependent) | 0.5 ms (USB / PC dependent) |
| Logic output levels | 3V3 | 3V3 |
| Logic input levels | 3V3, 5V tolerant | 3V3, 5V tolerant |
| Built-in cable impedance termination | 100 ohm | 100 ohm |
| ESD / under-voltage / over-voltage protection on I/O pins | Yes | Yes |
| Possible Power supply sources for IOTester | DC connector (4.5-8V) Target (3V3) USB connector (4.5-5V) | DC connector (4.5-8V) Target (3V3) USB connector (4.5-5V) |
| Power supply to target via IOTester 3V3 regulator | 3V3 300mA (USB) or 3V3 500mA (DC con.) | 3V3 300mA (USB) or 3V3 500mA (DC con.) |
| Direct power supply to target via IOTester DC connector + adaptor | 5V 1A (0-8V tolerant) | 5V 1A (0-8V tolerant) |

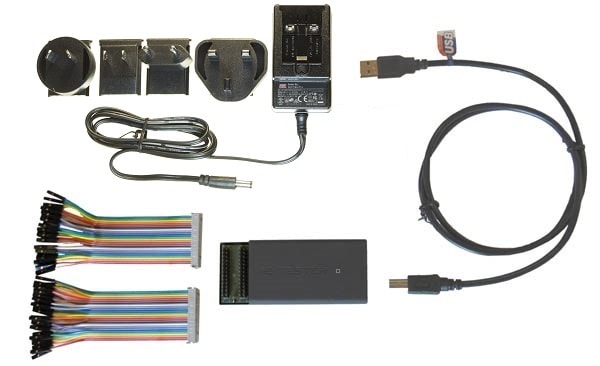

IOTester product package
Includes:
- IOTester box.
- USB cable to PC.
- Power adaptor 100V-240V AC to 5V DC. EU, US, UK connectors. Can also supply small target systems such as display modules.
- 2 x Target test cables. Makes it easy to adapt IOTester to different display connector pin orders.
- Win32, Win64 driver software for XP, Vista, Win7, Win8, Win10
- Full documentation and example PC projects. (Addition: Ready-made IOTester example and PC compilation projects are included with all RAMTEX GUI display driver libraries).
Additional hardware support: FCC/FCB target interface boards
The boards make it easy to create an interface between the IOTester target connectors and display modules with FCC/FCB type connectors.
