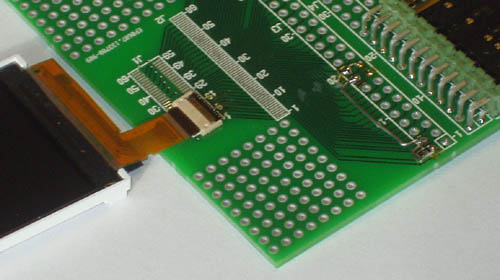

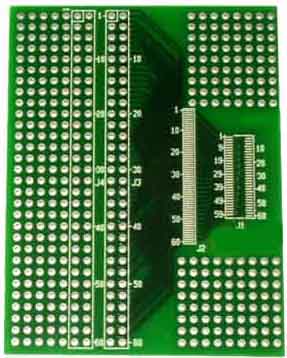

FCB/FCC cable connection board

Prototyping board for LCD display interfaces with FCB/FCC connectors. 0.3 - 0.5 mm pad pitch

FEATURES

• Easy conversion between FCC/FCB cables and standard ribbon cables.
• Pads for mounting of FCC/FCB SMD connectors:
  0.5 mm FCC/FCB connectors: 0.5 mm pad pitch, up to 60 poles.
  0.3 mm FCC/FCB connectors: 0.6 mm pad pitch x 2 (0.3 mm pad offset) up to 60 poles.
• Parallel connection with two 60-pole standard ribbon cable connectors.
• Large hole-area for additional connectors. Can be used as strap area between connectors. Ideal for converting between different signal sequences in cables.
• Can be used as interface board for the IOTester target connector.

• Two extra small hole-areas for prototype components, for instance for mounting of LCD-related components: contrast regulation pot-meters, capacitors for LCD step-up converters, resistor ladders for LCD voltage generation, extra power supplies, etc.
• PCB size: 60 x 79 mm.
